Bally E1000 Slot Machine Power Supply Adapter
Page created in 0.8 seconds with 20 queries.smalltownguy2
Well-known member
Bally Slot Machine Power Supply
- Joined
- Dec 30, 2008
- Messages
- 16,144
- Reaction score
- 1,465
- Location
- Osceola, Wisconsin
Bally E1000 Slot Machine Power Supply Diagram
Brought it home last night, and upon turning it on, I could see it was stuck in jackpot mode. No reset key, so I opened the cabinet and pushed the switch manually. Ran through setups, and it needed a reset. Found a video on YouTube showing me how to clear the settings and do a reset by powering off the machine, unplugging the top pcb, powering on, and waiting until I see 'CL' in the display.
That brought the machine to somewhat working status. I could coin it up and pull the handle, and the reels would spin. I played it until it won a small payout, and then it threw an error - 31 - which means hopper empty. So I filled the hopper, made sure the pressure switch was engaged. Turned off the machine, cleared it again, turned it back on. Played some more. Got a payout. No hopper movement at all. Error - hopper jam.
At this point, I've never seen the hopper motor move at all, not once.
No sound either. Tried adjusting what I believed to be the sound pot. Nothing. Tried a new speaker. Nothing.
I suspect a flaky power supply at this point.
This morning, on a cold fresh power on, I get no display on the LED. Owner told me that sometimes 'it takes a while' to get things going on the machine. Classic bad caps syndrome. I think I may need a new power supply.

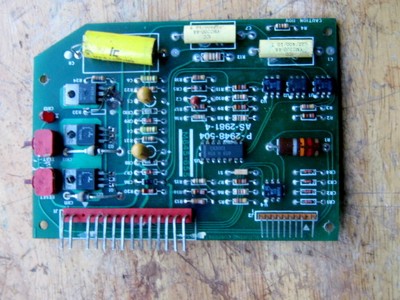

Here's some pics I took. Can anyone confirm the model I have? And a link to a manual?
